Evolution Drive
The system evolutionDrive consists of two collections: Jet Line and InLine.
These sliding elements are called „light”.
One can open the elements by moving the sliding sash behind the fixed sash.
It is also possible to make the element in such a way that both sashes are movable.
Product specification
- 5 chambers in frame, 4 chambers in sash
- frame construction depth of 76 mm
- sash construction depth of 50 mm
- glazing of 24 mm to 28 mm
- no threshold - window frame in the bottom part
- broad colour range
- fixed glazing in sash
- no possibility of tilting the sash
Maximum size for JetLine:
- 3000 x 2480 mm when the frame area does not exceed 6 m2
Maximum size for InLine:
- 3000 x 1600 mm when the frame area does not exceed 5,6 m2
The sliding element with a maximum width can only be made by breaking the symmetry, since the sliding sash cannot be wider than 1000 mm.
Technical data:
- Uw = 1,2 W/m2K
- Ug = 1,0 W/m2K (with warm edge)
- Uf = 1,8 W/m2K (for a reference window 3500 mm x 2480 mm)
Technical drawings
Gallery
Standard colors
(* production time as for non-standard colours)
The colours in the above photos may diverge slightly from the original.
Non-standard colors
The colours in the above photos may diverge slightly from the original.
Window Handles for evolutionDrive

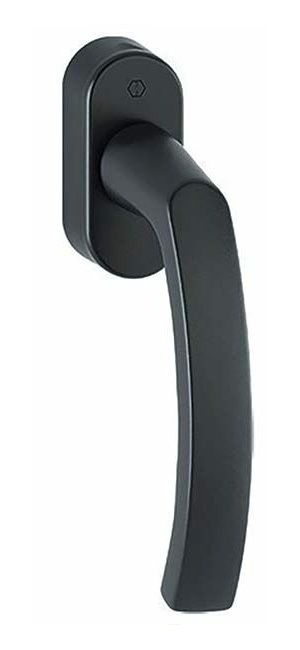

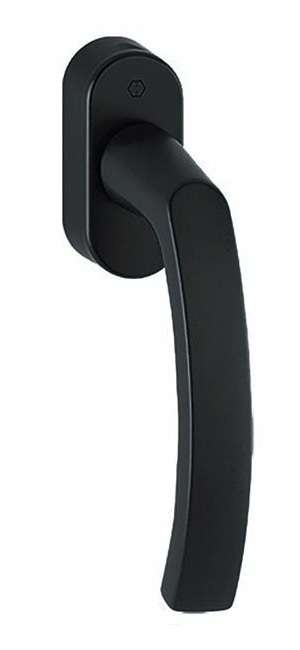

Secustic Luxembourg
Window handles SECUSTIC LUXEMBURG:
- it comes as standard in the collections Bluevolution 82 Classic, ArtLine
- compatible with all the window collections by Termo Profil
- a jamming-device which makes it more difficult to move the window fitting unlawfully from outside
- It allows for normal use of the window handle from inside, but jams the handle if anyone tries to turn it from outside by way of the fitting.
Other available versions:
- lockable – series TOKYO
- with a button – series NEW YORK
Pluto
Window handles PLUTO:
- it comes as standard in the collections Perfect, Prestige, Intertec, Ideal 7000
- compatible with all the window collections by Termo Profil
- grip part made of aluminium
Other available versions:
- lockable
Secuforte Hamburg
BURGLARY RESISTANT WINDOW HANDLES SECUFORTE HAMBURG:
- Protection against break-ins by piercing the glass seal, drilling the frame or manipulating the hardware
- Automatic locking function when the window is closed (0°) and when tilted (180°)
- Movement different than usual – push to turn
- compatible with all the window collections by Termo Profil
Other available versions:
- lockable
- with a button
Secuforte Toulon
BURGLARY RESISTANT WINDOW HANDLES SECUFORTE TOULON:
- Protection against break-ins by piercing the glass seal, drilling the frame or manipulating the hardware
- Automatic locking function when the window is closed (0°) and when tilted (180°)
- Movement different than usual – push to turn
- compatible with all the window collections by Termo Profil
Other available versions:
- lockable
- with a button
Roto Swing
Roto Swing is a modern range of handles.
The design of the handles impresses as an exclusive and individual design element on the window – elegant and at the same time ergonomically advantageous.
Window handles Roto Swing:
- compatible with all the window collections by Termo Profil
- a window handle uniquely elegant in shape - slightly curved
- - innovative design, basic shape, smooth operation: these are some of the distinguishing characteristics of the SWING window handle
Other available versions:
- lockable
- with a button
Tallinn
